Grip Ring For Shaft without Groove

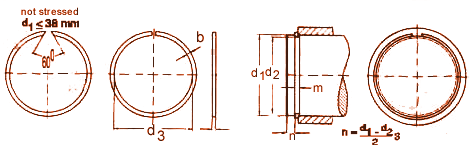

Snap Ring for Housing Bores
DIN 5555


Nominal  dimension

RING

Shaft dia
d1
h 11

  s
d3
a
~
b
~
d5
Weight
(kg /1,000)
Max.load
  (kg)
1.5
0.40
1.40
1.7
0.7
0.9
0.02
4.0
2.0
0.60
1.90
1.7
1.0
0.9
0.03
5.0
2.5
0.60
2.35
1.7
1.2
0.9
0.04
6.0
3.0
0.60
2.85
1.9
1.4
0.9
0.05
7.5
3.5
0.60
3.30
2.1
1.6
0.9
0.08
9.0
4.0
0.80
3.80
2.7
1.8
1.3
0.17
10.0
4.5
0.80
4.25
3.0
2.0
1.3
0.22
12.0
5.0
0.80
4.75
2.6
2.2
1.3
0.26
13.0
6.0
1.00
5.70
3.0
2.5
1.3
0.38
17.0
7.0
1.00
6.70
3.2
2.8
1.3
0.48
18.0
8.0
1.20
7.70
3.3
3.0
1.3
0.55
20.0
9.0
1.20
8.65
3.0
3.3
1.5
0.75
23.0
10.0
1.20
9.65
3.0
3.5
1.5
0.96
25.0
11.0
1.20
10.60
3.6
4.2
1.7
1.25
28.0
12.0
1.20
11.60
3.6
4.7
1.7
1.50
30.0
13.0
1.20
12.55
4.0
5.0
1.7
1.80
32.0
13.8
1.50
13.30
4.6
5.4
2.0
2.65
35.0
14.0
1.50
13.50
4.6
5.4
2.0
2.60
35.0
15.0
1.50
14.50
4.8
5.7
2.0
2.80
40.0
16.0
1.50
15.40
4.9
5.9
2.0
3.20
50.0
17.0
1.75
16.35
6.0
6.3
2.5
4.80
60.0
18.0
1.75
17.30
6.0
6.7
2.5
5.20
70.0
20.0
1.75
19.30
6.0
7.1
2.5
6.00
75.0
22.0
1.75
21.20
6.0
7.4
2.5
6.50
80.0
24.0
1.75
23.15
6.5
7.8
2.5
6.80
85.0
25.0
1.75
24.15
6.5
8.2
2.5
7.00
90.0
